603SYS

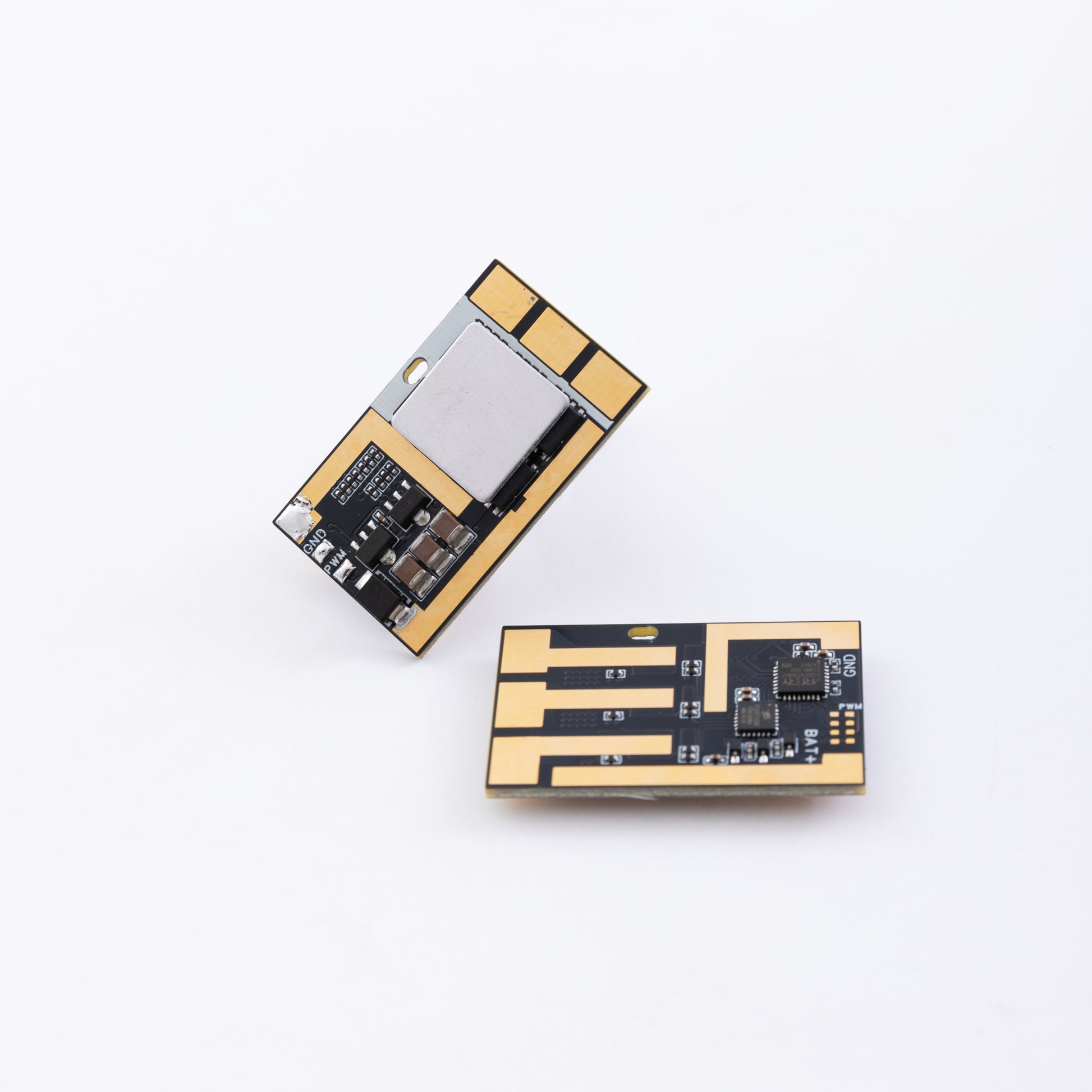

603SYS AM32 ESC 6S 45A 32bit High-Performance BLDC ESC

603SYS AM32 ESC 6S 45A 32bit High-Performance BLDC ESC

Regular price $9.90 USD
Regular price $29.90 USD Sale price $9.90 USD
Sale Sold out
Quantity

Unlock the full potential of your build with our High-Performance 45A Brushless ESC. Engineered for reliability and top-tier performance, this ESC is powered by advanced AM32 firmware, delivering smooth, responsive, and efficient motor control for FPV drones, RC aircraft, and other high-demand applications.

Its robust design handles a continuous current of 45A and bursts up to 55A, providing ample power for aggressive maneuvers. With a wide operating voltage of 2-6S LiPo, it offers excellent versatility for a variety of setups. The ultra-wide operational temperature range from -40°C to 85°C ensures dependable performance in even the most extreme weather conditions.

Key Features:

  • Powerful Performance: Delivers a stable 45A continuous current and a 55A peak burst current with adequate cooling.

  • Wide Voltage Range: Fully compatible with 2S to 6S LiPo batteries, making it suitable for diverse builds.

  • Advanced AM32 Firmware: Equipped with modern 32-bit AM32 firmware for superior speed, precision, and customization.

  • Multiple Protocol Support: Seamlessly integrates with your flight controller via PWM, DShot300, and DShot600 protocols.

  • All-Weather Reliability: Built to operate flawlessly in extreme temperatures, from a freezing -40°C to a scorching 85°C.

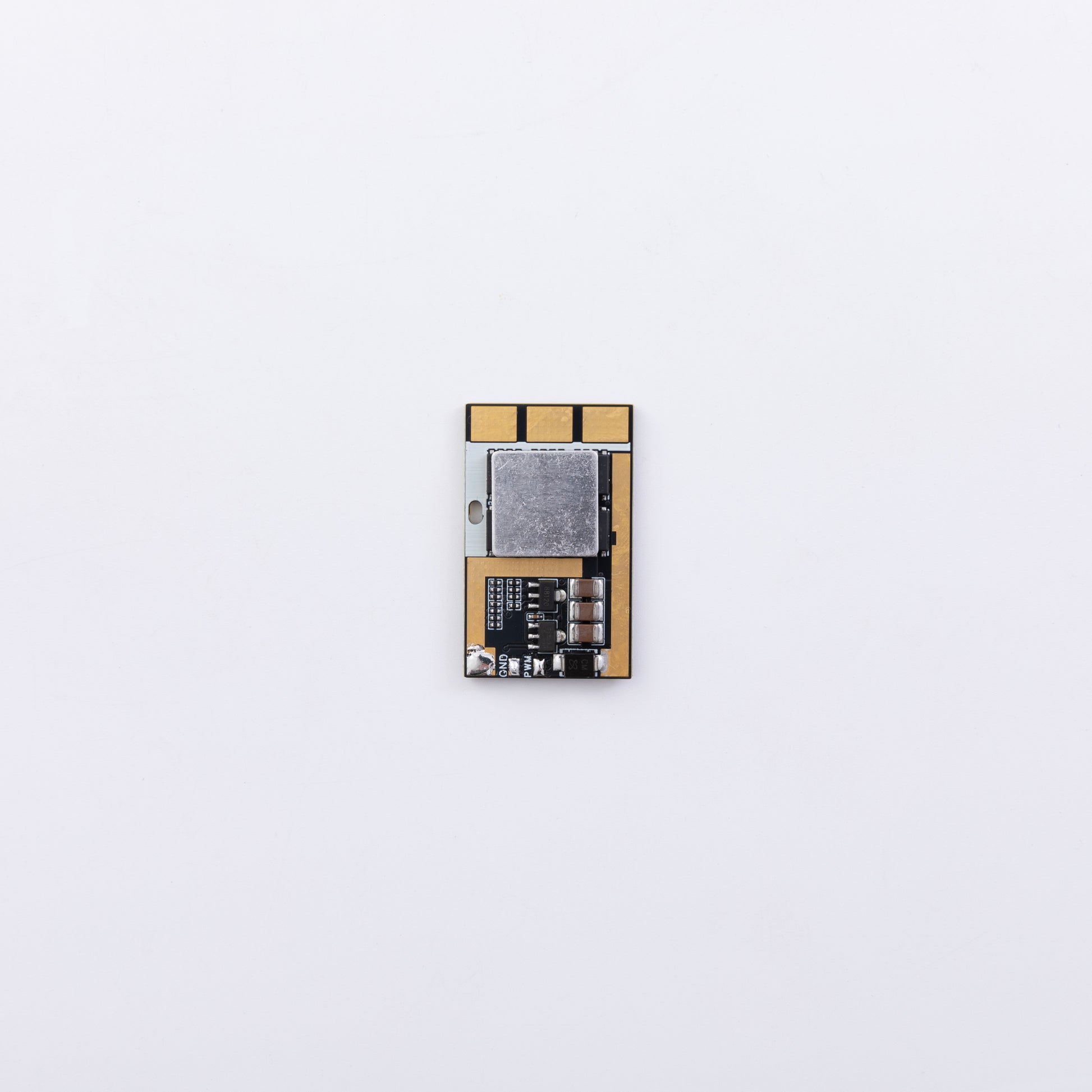

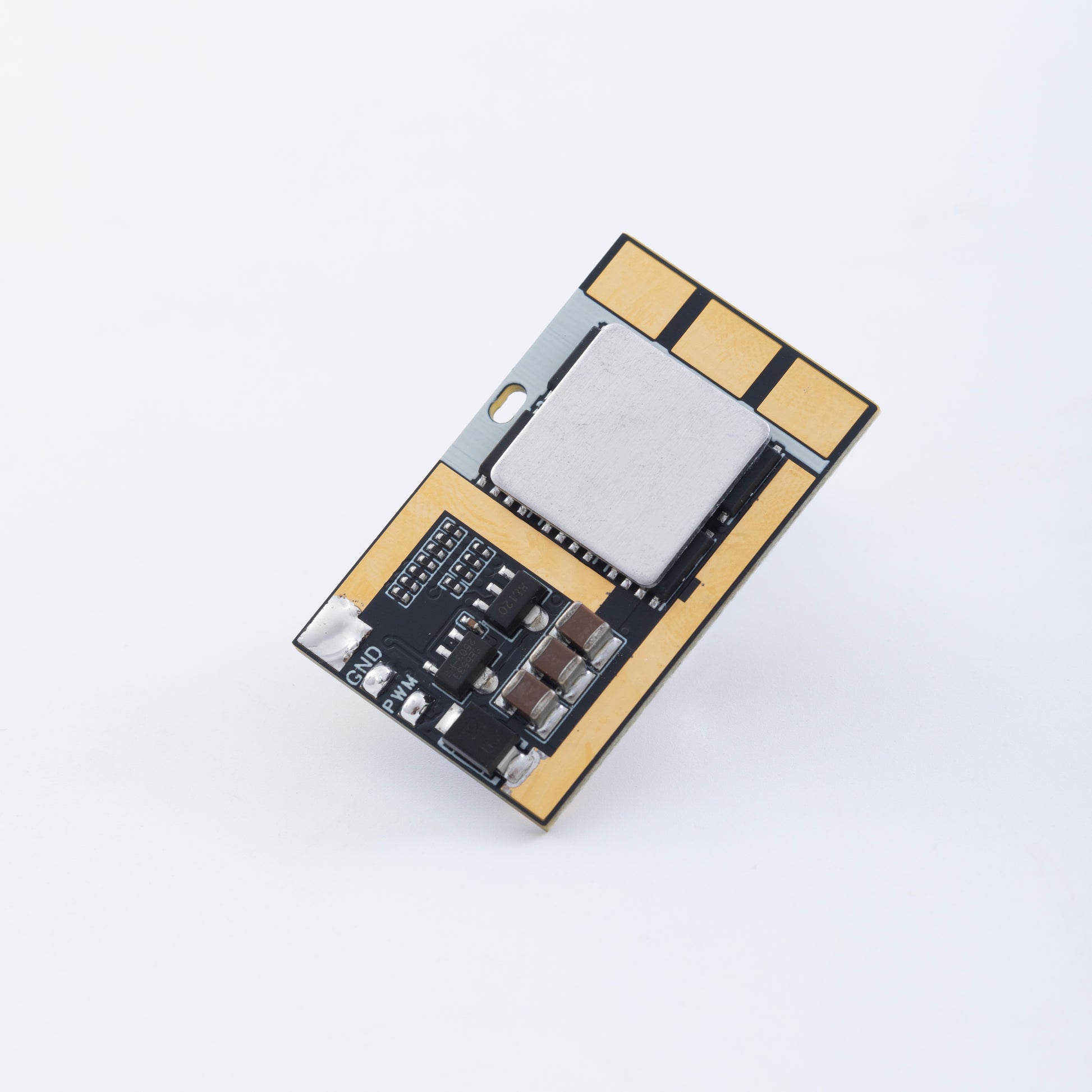

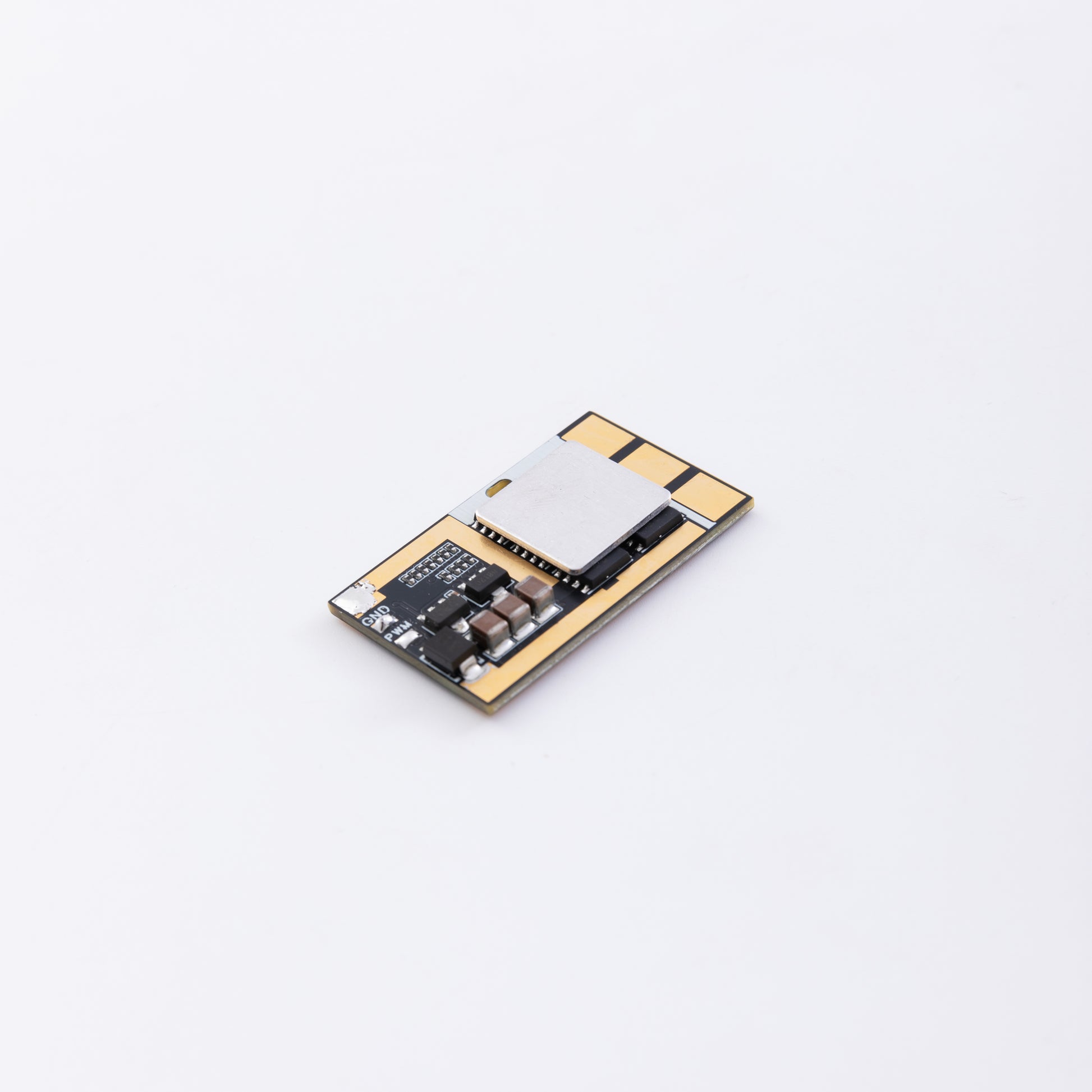

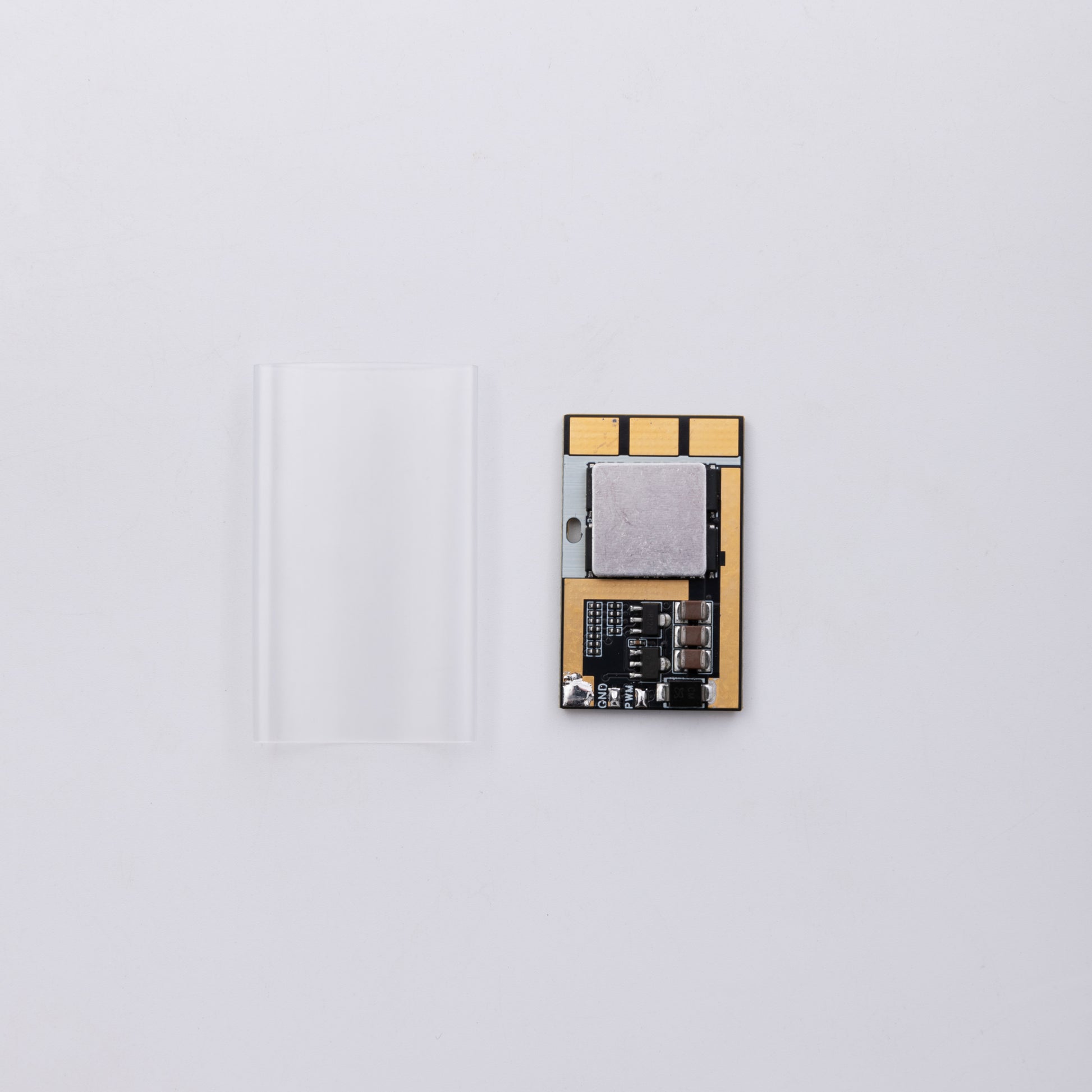

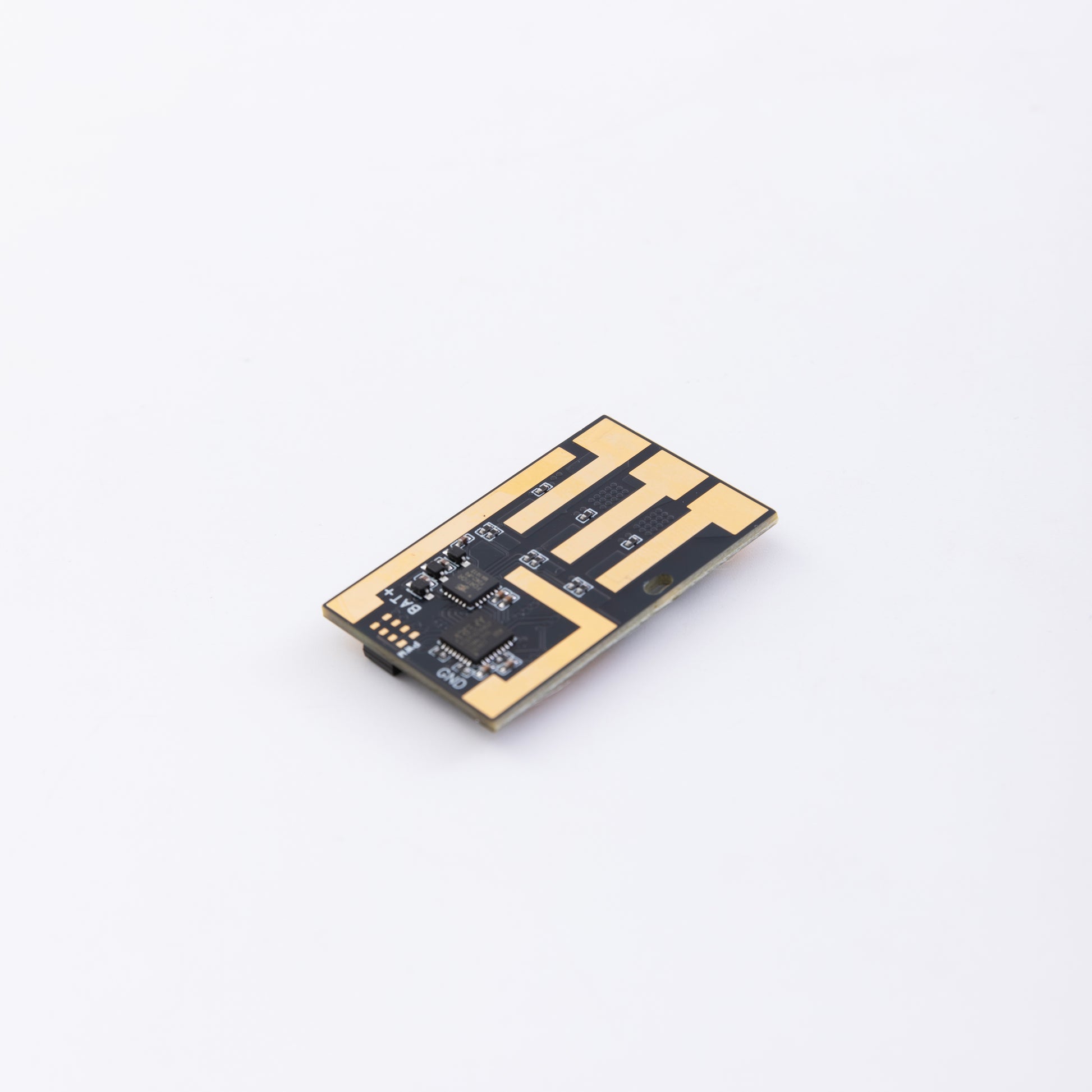

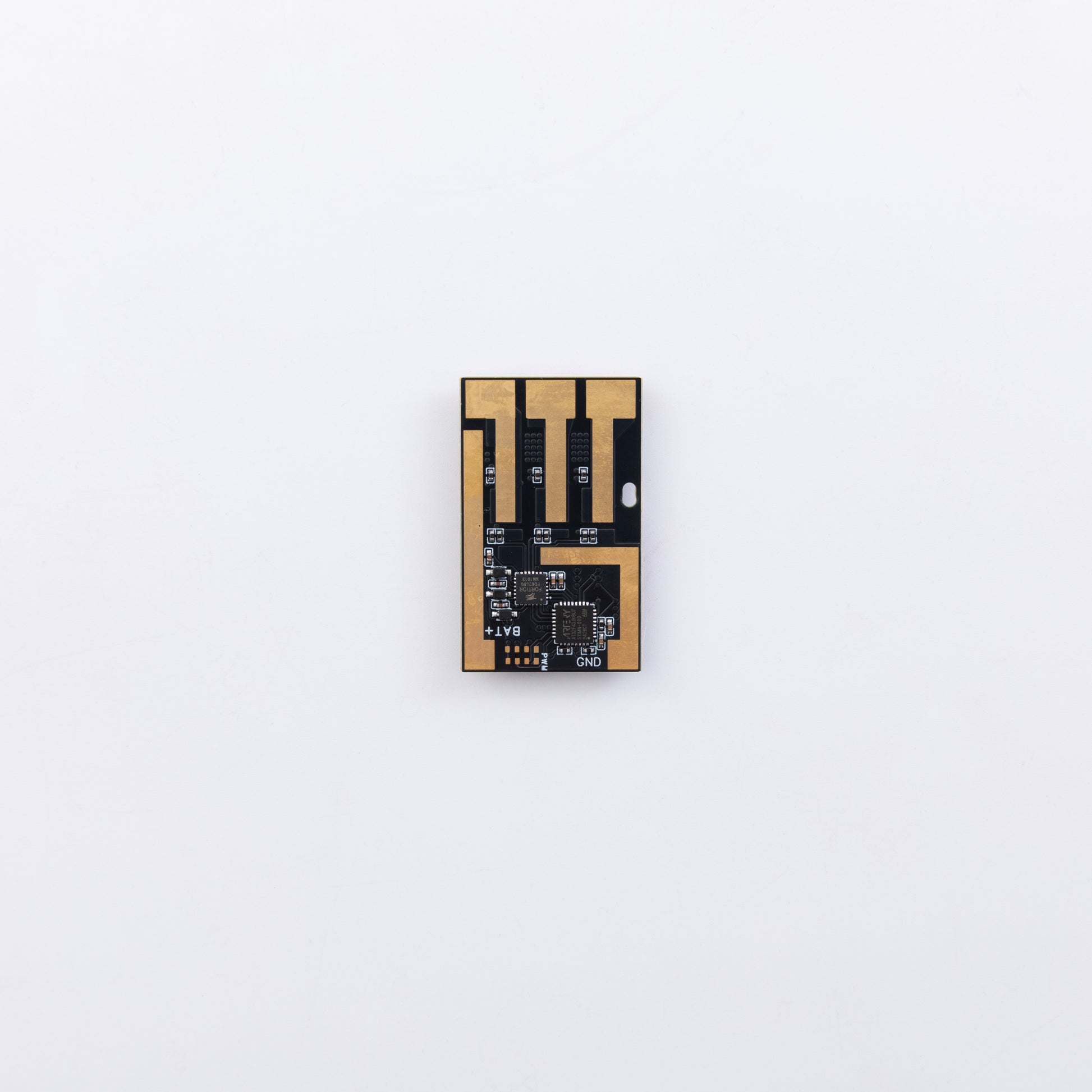

  • Ultra-Lightweight & Compact: Weighing just 6.4g with a compact footprint of 24mm x 29mm, it's perfect for tight and weight-sensitive builds.

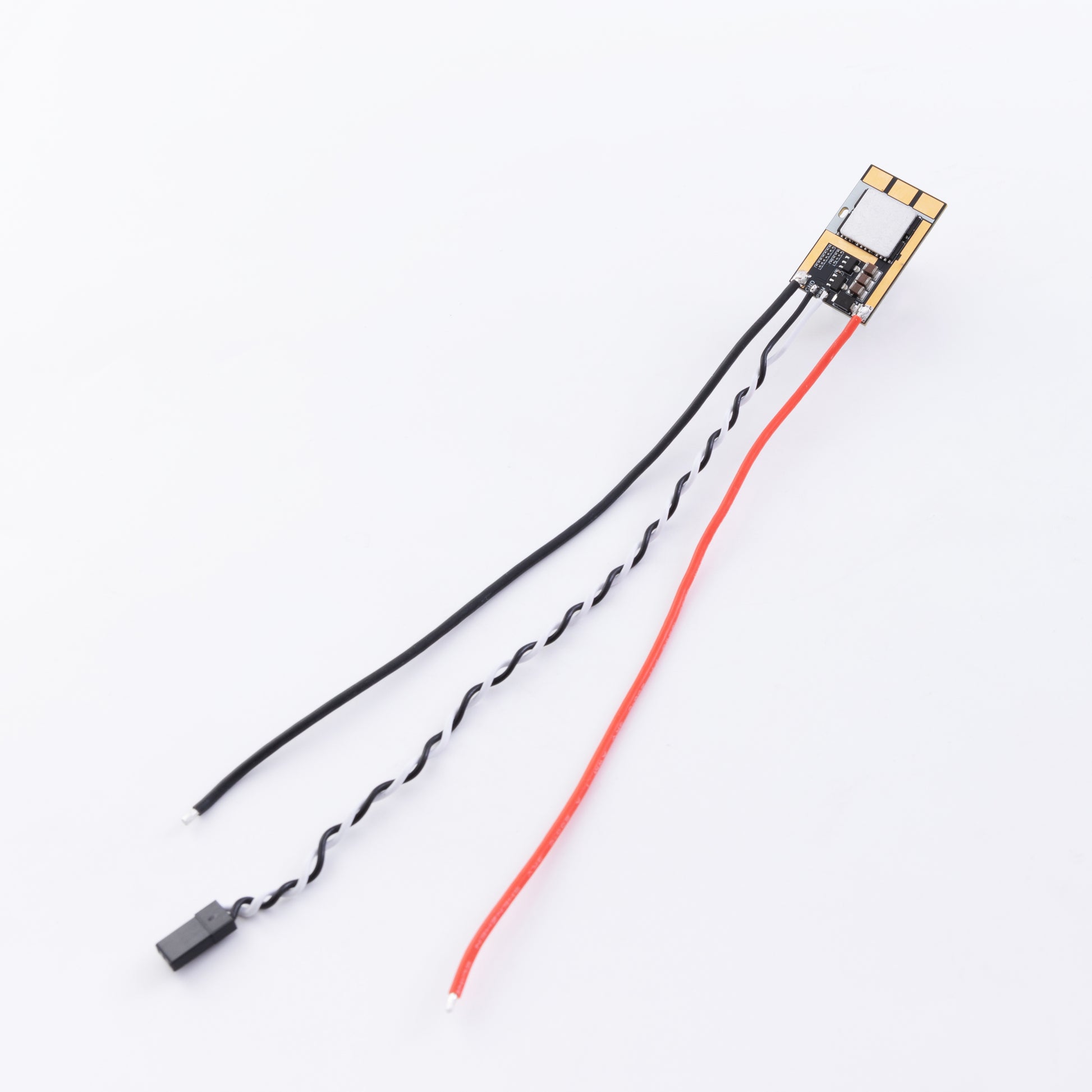

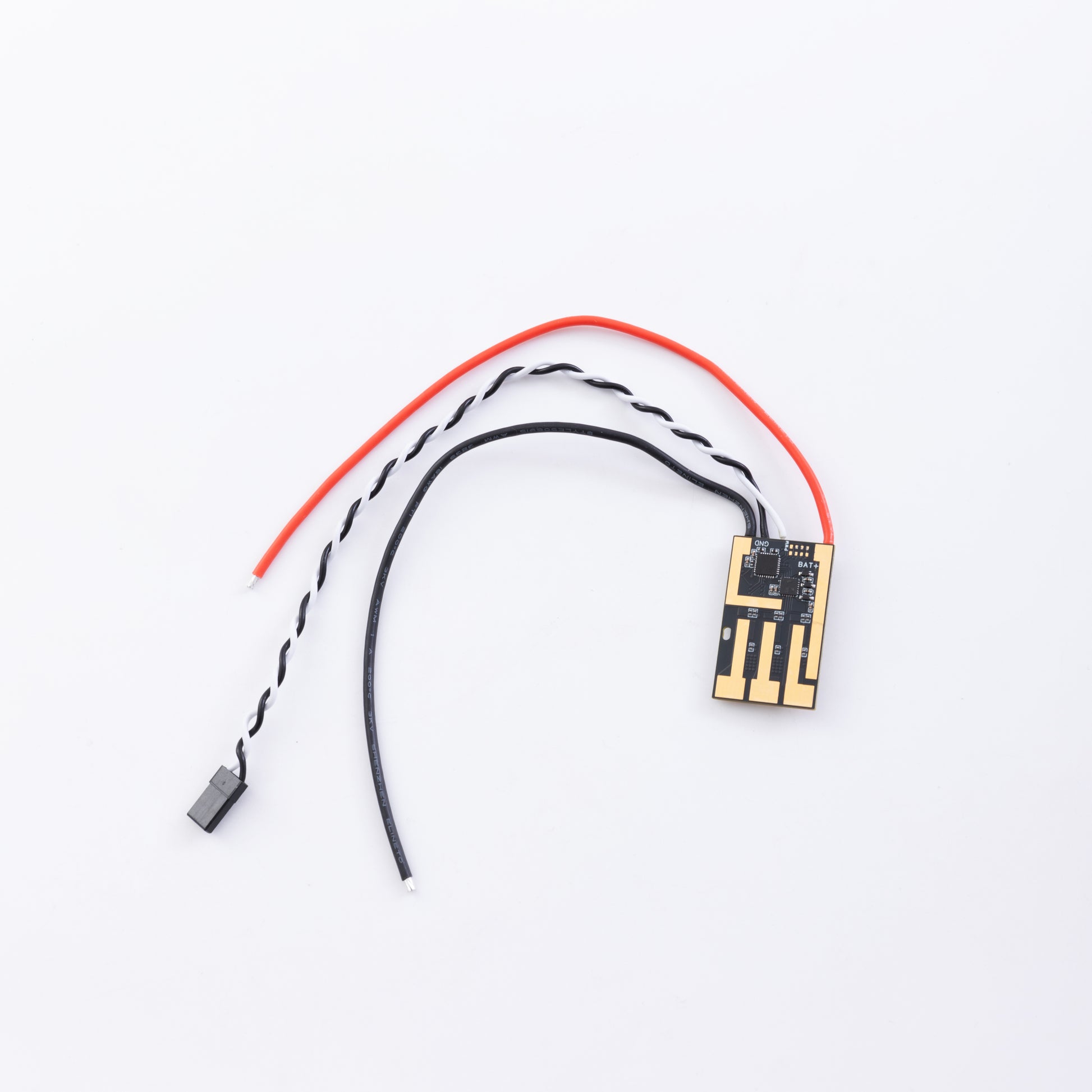

  • Premium Wiring: Comes with 20cm of flexible, high-temperature 16AWG UL3239 power leads and a 20cm 60-core twisted-pair signal wire for reduced interference.

Specifications:

  • Input Voltage: 2-6S LiPo

  • Continuous Current: 45A (with good heat dissipation)

  • Peak Current: 55A

  • Firmware: AM32

  • Supported Protocols: PWM, DShot300, DShot600

  • Operating Temperature: -40°C to 85°C

  • Weight: 6.4g

  • Dimensions: 24mm x 29mm

  • Power Wires: 16AWG UL3239 High-Temp Wire (20cm)

  • Signal Wire: 60-Core Black & White Twisted Pair (20cm)
